Model no
478

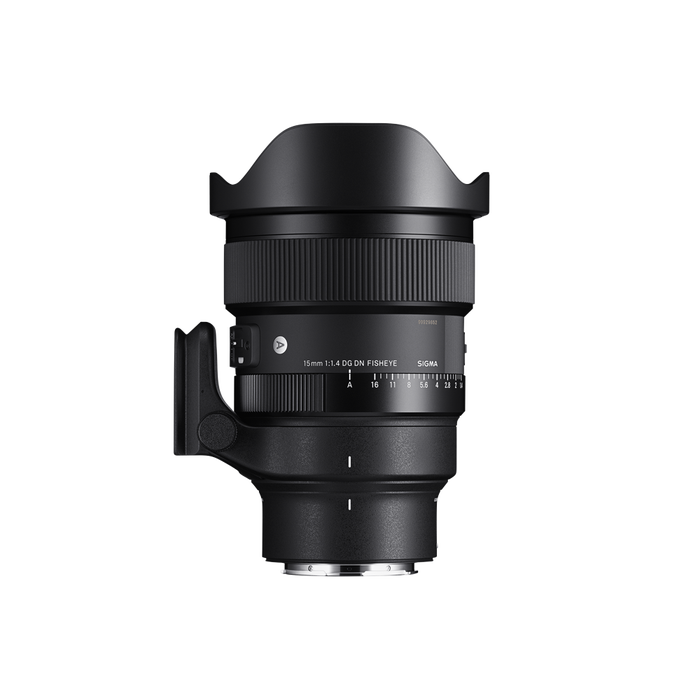

15mm F1.4 DG DN FISHEYE

2 119

180° of high resolution. An innovative diagonal fisheye lens

  • Ultra-wide 180° angle with aperture F1.4
  • Diagonal Fisheye
  • Manual Focus Lock Switch (MFL)
  • Dust and Splash Resistandt Structure
  • Aperture ring
  • Tripod socket
  • Lens Heater Retainer
  • Rear filter Holder
  • Made in Japan
In Stock In Stock

The world's first* F1.4 diagonal fisheye interchangeable lens for 35mm full-frame. Unparalleled resolving power that overturns the conventional wisdom about fisheye lenses


In developing a fisheye lens featuring an ultra-wide-angle and powerful fisheye distortion, SIGMA has achieved a completely new level of artistic potential, combining the world's first F1.4 aperture for consumer use with outstanding resolving power across the entire image. In terms of optical performance, the SIGMA 15mm F1.4 DG DN DIAGONAL FISHEYE | Art has achieved excellent point image reproducibility and high resolution by correcting various aberrations, especially sagittal coma flare.

* As an interchangeable lens for full-frame cameras for consumer use. (As of February 2024 by SIGMA)

Image by Shigemi Numazawa

The lens is capable of handling astrophotography, which demands particularly high-quality performance, even when wide-open. Unlike conventional fisheyes, the SIGMA 15mm F1.4 DG DN DIAGONAL FISHEYE | Art is exceptionally sharp across its entire 180° angle-of-view and offers an ultra-fast F1.4 aperture, making it perfect for a wide range of applications including astrophotography, landscapes and architecture. The expressive power of this all-new full-frame mirrorless lens opens a wealth of creative possibilities in wide-angle photography.



Even wide-open, high resolution and point image reproducibility across the entire image

The lens consists of 21 elements in 15 groups, including 4 FLD and 3 SLD exclusive low-dispersion glass elements, and 2 aspherical lens elements.  By correcting sagittal coma flare and other aberrations, the lens can precisely reproduce bright points of light across the whole frame even wide-open, making it ideal for astrophotography.



Diagonal fisheye lens with 180° angle of view

The powerful distortion effect, which is the appeal of fisheye lenses, allows users to enjoy expressions such as a unique perspective and emphasis on the subject at a 180° angle of view. In addition, the SIGMA 15mm F1.4 DG DN DIAGONAL FISHEYE | Art is designed with the strict performance standards of the Art line. Furthermore, all lenses are inspected with SIGMA's proprietary MTF measuring system. The unique descriptive power of this new fisheye lens, which combines an incredible 180° angle-of-view with very high resolution optics, delivers a level of artistic potential that exceeds other fisheye lenses.

Designed to minimize flare and ghosting

To prevent flare and ghosting, which reduce image quality, the lens is designed to handle all conditions of incident light based on state-of-the-art simulation technology. High backlight resistance enables clear and sharp images under any lighting conditions.

MFL (Manual Focus Lock) Switch
The lens is equipped with an MFL switch. When the MFL switch is set to “LOCK,” the focus ring operation is disabled, ensuring that once focus is acquired, it will not be changed by unintentional movement of the ring. This is useful for long exposures and other situations where the focus should be fixed while shooting.

Lens Heater Retainer
A small step at the front of the lens called a lens heater retainer prevents the lens heater* from protruding over the front element, eliminating the risk of vignetting.

* A belt-shaped heat strip that is wrapped around the lens to prevent condensation from forming inside the lens when the temperature drops.

Rear filter Holder
A standard-equipped rear filter holder at the lens mount allows sheet-type filters to be used.

Special front cap with locking mechanism and filter slots
The included cover lens cap features two slots to securely store rear filters, as well as a locking mechanism. The cap is specially designed for the SIGMA 15mm F1.4 DG DN DIAGONAL FISHEYE | Art, allowing users to carry sheet-type filters without the risk of confusing or forgetting them, while protecting them from scratches and dirt.

Tripod Socket
The lens is equipped with an Arca-Swiss compatible, lightweight and sturdy magnesium alloy tripod socket. The detachable leg can be mounted on a tripod for stable conditions even during long exposures. The shape has been deliberately designed to prevent interference when using a lens heater.

* The tripod socket TS-141 is also compatible with the SIGMA 14mm F1.4 DG DN | Art.

Image by Tony Noel

Various shooting assist functions

The lens is equipped with an AFL button which can be assigned to a range of functions via the menu on selected cameras. In addition to the aperture ring, the lens is equipped with an aperture ring lock switch and a click switch to turn the click on and off.



Dust and splash resistant structure and water and oil repellent coating

In addition to a dust and splash resistant structure, the front element of the lens features a water and oil repellent coating, allowing photographers to shoot without concerns even in harsh outdoor environments.



Adopts a linear motor HLA

The AF actuator is a linear motor HLA (High-response Linear Actuator). The high thrust motor and advanced electronic control operate the focus lens at high speed and with high precision to provide comfortable AF shooting.



Excellent build quality

To support the heavy optical system and enhance robustness and reliability, metal parts are used in key parts of the lens body. Meanwhile, the lightweight engineering plastic TSC* is also used in appropriate places to reduce weight. Furthermore, each control part, such as rings and switches, is designed to feel good. SIGMA is proud of the exceptional build quality of its products, which do not compromise on durability, operability, and a satisfying sense of ownership.


Key Specifications & Additional features
Lens Construction: 21 elements in 15 groups, with 4 FLD, 3 SLD and 2 aspherical elements
Angle of view: 180°
Number of diaphragm blades: 11 (rounded diaphragm)
Minimum focusing distance: 38.5 cm
Minimum aperture: F16
Maximum magnification ratio: 1:16
Filter size: ø95mm
Dimensions:
L-Mount: ø104.0mm × 157.9mm
E-mount: ø104.0mm × 159.9mm
Weight:
L-Mount: 1360g
E-mount: 1360g

• Inner focus system
• Compatible with high-speed autofocus
• HLA (High-response Linear Actuator)
• Supports DMF and AF+MF
• Compatible with AF assist (for Sony E-mount only)
• Super Multi-Layer Coating
• Water and Oil Repellent Coating (front element)
• Aperture ring
• Aperture ring click switch
• Aperture ring lock switch
• Compatible with Lens Aberration Correction*
* Due to being a fisheye lens, distortion will not be corrected.
* Function available on supported cameras only. Available corrections or auto correction functionality may vary depending on the camera model.
* On cameras where lens aberration correction is controlled with ‘ON’ or ‘OFF’ in the camera menu, please set all aberration correction functions to ‘ON’(AUTO).
• AFL button
* Function available on supported cameras only. Available functions may vary depending on the camera used.
• Dust and Splash Resistant Structure
• MFL (Manual Focus Lock) switch
• Rear filter holder (compatible with Guide Plate GP-21)
• Lens heater retainer
• Focus Mode switch
• Support for switching between linear focus / non-linear focus ring settings (for L-Mount only)
*Function available on supported cameras only.
• Tripod Socket TS-141
• Special Cover Lens Cap LC1040-01 with a locking mechanism and filter slots
• Compatible with SIGMA USB Dock UD-11 (sold separately / for L-Mount only)
• Designed to minimize flare and ghosting
• Every single lens undergoes SIGMA’s proprietary MTF measuring system
• 11-blade rounded diaphragm
• High-precision, durable brass bayonet mount
• Mount Conversion Service available
• “Made in Aizu, Japan” craftsmanship

Image by Daisuke Fujimura

Specifications
More Information
Product LinesArt
Construction21 elements in 15 groups (4 FLD, 3 SLD, and 2 Aspherical lenses)
Lens TypeWide Angle
Sensor SizeFull Frame
Angle of view180°
Number of diaphragm blades11 (rounded diaphragm)
Minimum apertureF16
Minimum focusing distance38,5 cm
Maximum magnification ratio1:16
Dimensions (diameter x length)

Sony FE
L-mount

φ104mm × 159,9mm
φ104mm × 157,9mm

Weight (g)

Sony FE
L-mount

1360 g
1360 g

Filter diametern/a
Edition numberA024
Supplied AccessoriesCover Lens Cap LC1040-01, Tripod Socket TS-141, Protective Cover PT-51, Gide Plate GP-21, Rear Cap, Soft Case LS-478SEL
AccessoriesUSB dock UD-11 (L-mount only)
EAN

Sony FE
L-mount

085126478650
085126478698

* All figures calculated by L-Mount. Note: The L-Mount Trademark is a registered Trademark of Leica Camera AG. About Product Name: Product name includes "DG" when the lens is designed to deliver the ultimate in performance on cameras with full-frame sensors, and "DN" when the lens design is optimized for mirrorless cameras with the short flange focal length.
Lens Construction
Geometrical MTF Chart
Diffraction MTF Chart
